Seal Design Guide for Spring Energized Seals

A practical engineering reference for designing and integrating spring energized seals into demanding sealing applications.

Seal performance depends on more than the sealing material alone. Spring load, lip geometry, pressure, extrusion clearance, gland design, mating hardware and installation conditions all affect how a spring energized seal performs in service.

This guide outlines the main design factors to consider when selecting or developing a spring energized seal for static, reciprocating, oscillating, rotary or other demanding applications.

Request a Quote Send Your Drawing

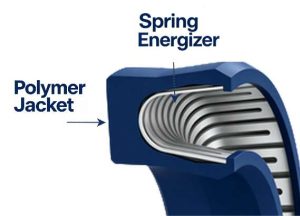

Seal Design Guide for Spring Energized Seals

Key Seal Design Considerations

A spring energized seal is a system, not a single component. These seven factors interact with each other — change one and the requirements of the others may shift.

01
Spring Energizer

View →

02
Lip Profile

View →

03
Pressure & Extrusion

View →

04
Seal Material

View →

05
Gland Design

View →

06
Mating Hardware

View →

07
Installation

View →

These factors should be evaluated together rather than in isolation.

A change in one area can shift the requirements of the others.

The right combination is defined by the application — not by a universal standard.

DESIGN FACTOR 01

Spring Energizer Selection

Spring energizer selection should be based on the required sealing force, available deflection, motion, friction requirements, operating environment and available gland space. Different spring geometries provide different load and deflection characteristics, so the spring should be selected as part of the complete seal design rather than as an isolated component.

Spring Characteristic Design Consideration
Spring Load Initial sealing force, friction and wear
Deflection Range Wear compensation, runout and dimensional variation
Spring Geometry Available space, motion and sealing configuration
Material
 Temperature, media and corrosion requirements

Hansealing manufactures multiple spring energizer configurations, including Helical, Canted Coil, Cantilever V, Cantilever U, Full Contact and Detached Leg designs. The appropriate configuration depends on the sealing position, motion, required load, available space and operating environment.

Two Things to Consider When Selecting a Spring

Spring load — Spring load affects the initial contact force between the seal lip and mating surface. Increasing spring load can improve initial sealing contact, but may also increase friction and wear. The appropriate load is therefore a balance between sealing reliability, friction and service life.

Deflection range — Deflection range determines how much dimensional variation the spring can accommodate while maintaining sealing contact. It becomes particularly important where seal wear, shaft runout, bore variation or assembly tolerances are present.

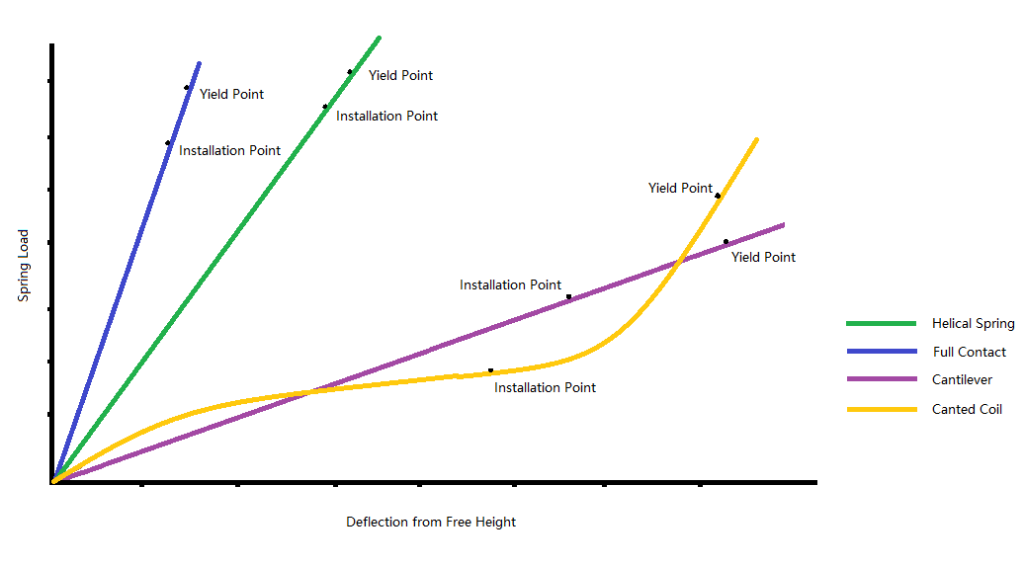

Spring Energizer Load vs Deflection Chart Revised
Spring Energizer Load vs. Deflection
Cantilever U Spring Energizer
Cantilever Spring
Canted Coil Spring
Canted Coil Spring (Slanted Coil Spring)
Helical Spring Energized
Helical Spring

Spring Type Comparison

Spring Type Load Characteristic Typical Use
Cantilever Spring Moderate and progressive load, high flexibility at the lip edge Dynamic sealing, highly viscous and abrasive fluids
Canted Coil Spring Relatively flat and moderate load over a broad deflection range Friction-sensitive sealing, small diameters and cross-sections
Helical Spring Can provide relatively high spring load within a compact deflection range, making them useful for applications where strong energizing force and dimensional stability are important. Low pressure, vacuum and cryogenic sealing

DESIGN FACTOR 02

Seal Lip Designs

The lip profile controls how the seal contacts the mating surface and has a direct influence on friction, lubrication, wear and resistance to contamination. Three common profiles are beveled/chamfered, scraper and rounded/beaded/radiused, while application-specific geometries can be developed when standard profiles are not suitable.

Seal Designs Lip Chamfered Seal Lip H

Beveled / Chamfered Seal Lip

A widely used general-purpose profile for dynamic and static sealing.

The angled lip creates a defined contact area with the mating surface and can provide a good balance between sealing contact, friction and lubrication.

It is also relatively easy to install when the gland and seal geometry are properly designed.

Seal Designs Lip Scraper Seal Lip

Scraper Seal Lip

A scraper profile is commonly considered where abrasive particles, dust or other contamination may reach the sealing interface.

The scraping edge helps limit particle accumulation around the sealing lip and can reduce contamination-related wear.

Installation requires particular care because the thinner lip geometry can be more sensitive to damage.

Seal Designs Lip Rounded Seal Lip

Rounded / Beaded / Radiused Seal Lip

The rounded contact area can maintain a broader lubricating film between the seal and mating surface, which may reduce contact stress and wear in suitable dynamic applications.

However, the same geometry may allow more fluid migration than a sharper sealing edge in some high-speed reciprocating applications and is generally less suitable for abrasive media.

DESIGN FACTOR 03

Pressure Capabilities and Extrusion Gap

For high-pressure applications, provide the operating pressure, temperature, extrusion clearance and hardware drawing so the seal configuration can be evaluated for the actual application.

  • Extending the seal height
  • Reducing the operating temperature
  • Reducing the extrusion gap clearance
  • Adding backup rings made of high extrusion-resistant materials

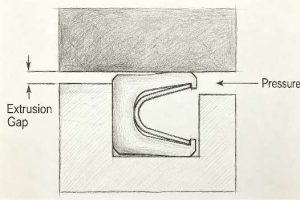

Extrusion Gap

The extrusion gap is the clearance between the seal and the adjacent hardware. Under pressure the polymer jacket tends to flow into this gap. If the gap is too large or the pressure too high for the material’s modulus, the seal extrudes and fails. Reducing the gap is often the most effective way to extend seal life at high pressure.

Seal Height

Increasing the seal’s radial cross-section provides more material to resist extrusion. A taller seal has a longer extrusion path before material reaches the gap. The trade-off is higher installation force and larger gland dimensions.

Backup Rings

Backup rings or anti-extrusion elements can be used when the available hardware clearance cannot be reduced sufficiently. Material selection should consider pressure, temperature, media compatibility and the required extrusion resistance.

Extrusion gap

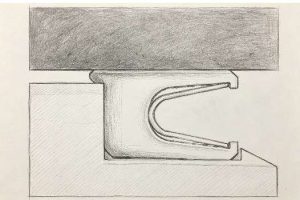

Extruded seal
Standard Heel Spring Energizer Seals
Standard Heel Seals
Extended Heel Spring Energizer Seals
Extended Heel Seals
Dual Wedge Backup Ring Heel Spring Energizer Seals
Dual Wedge Backup Ring Heel Seals
Extrusion Rectangular Heel Spring Energizer Seals
Extrusion Rectangular Heel Seals

DESIGN FACTOR 04

Gland Design

Gland configuration directly affects seal installation, retention and resistance to distortion. The most common configurations are split, step and closed glands.

Split Housing Gland (Separable)

A split or separable gland allows the seal to be installed without stretching it over the shaft or compressing it into a closed groove.

This configuration is particularly useful for larger seals and applications where protecting the sealing lip during installation is important.

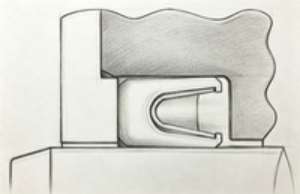

Split gland – rod sealing, lips first
Split gland – rod sealing, lips first

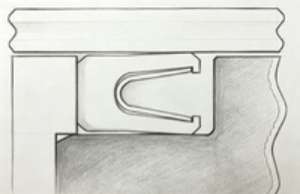

Split gland – piston sealing, lips first
Split gland – piston sealing, lips first

Step Gland

A step gland uses a reduced gland wall or shoulder to help retain the seal while allowing installation in a non-split housing.

It is commonly considered when a split housing is not practical and the seal can be installed from the heel side.

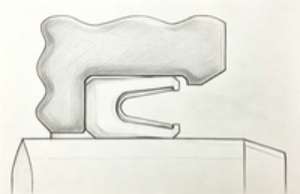

Step gland – rod sealing, heel first
Step gland – rod sealing, heel first

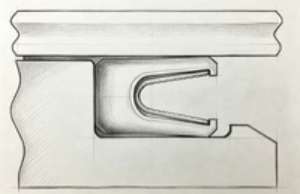

Step gland – piston sealing, heel first
Step gland – piston sealing, heel first

Closed Gland

A closed gland provides a fully enclosed groove around the seal. This configuration may require the seal to be stretched or compressed during installation, so seal dimensions, installation procedures and protective tooling should be considered during the design stage.

Sharp corners, threads, keyways and other discontinuities should not be allowed to damage the sealing lip during installation.

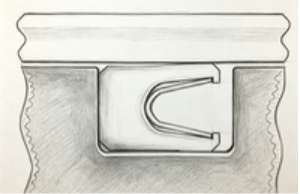

Closed gland – piston sealing
Closed gland – piston sealing

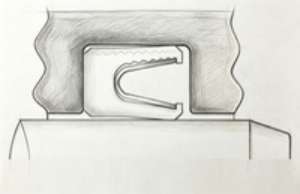

Closed gland – rod sealing
Closed gland – rod sealing

Gland Design Principle

The gland should be designed together with the seal, not selected independently. Groove width, depth, seal cross-section, extrusion clearance, pressure direction and installation method should all be considered together.

DESIGN FACTOR 05

Symmetrical vs. Non-Symmetrical Seals

The appropriate configuration depends on pressure direction, motion, clearance and gland geometry.

Symmetrical Seals

Symmetrical profiles can generally be used for either rod or piston sealing and simplify seal orientation and inventory.

They are useful where installation flexibility and a common seal configuration are more important than optimizing the profile for one specific direction of movement.

Non-Symmetrical Seals

Non-symmetrical profiles are designed around a defined sealing direction or application.

They can provide additional support or stability in demanding dynamic applications when the seal profile and gland are designed together.

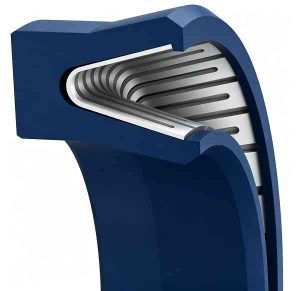

Symmetrical V-spring rod or piston seal cross-section

DESIGN FACTOR 06

Installation Considerations

Correct installation is essential to achieving the intended sealing performance. Even a properly designed seal can be damaged during assembly if the installation path or tooling is not suitable.

Mating Hardware

Mating hardware is part of the seal design. Shaft or bore dimensions, surface condition, hardness, dimensional tolerance and available clearance can all influence sealing performance.

Hardware Preparation

Before installation, inspect the shaft, bore and gland for burrs, sharp edges, threads, keyways and surface damage that could contact the sealing lip.

Mating surfaces should also be checked for dimensional accuracy and suitable surface condition before the seal is installed.

Lips-First vs. Heel-First Installation

Spring energized seals may be installed lips-first or heel-first depending on the seal profile and gland configuration.

Lips-first installation requires the sealing lip to pass over the mating hardware and therefore requires careful control of edges, transitions and installation tooling.

Heel-first installation can reduce the risk of damaging the sealing lip, but requires a gland configuration that allows the seal to be positioned correctly.

Installation Tools

Tapered sleeves, installation cones, guide tools and protective caps can help prevent the seal lip from contacting sharp edges, threads or grooves during assembly.

Protecting the Lip

When the seal must pass over threads, grooves, keyways or other discontinuities, use an appropriate installation sleeve, guide or protective method.

Avoid forcing the lip over sharp edges.

Avoiding Twisting

The seal should remain properly seated in the gland during installation. Twisting, rolling or uneven deformation can change the lip position and spring loading, potentially causing leakage or premature wear.

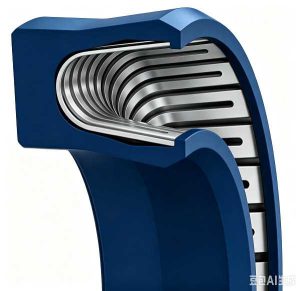

Cantilever Spring Seal

DESIGN FACTOR 07

Selecting the Right Seal Design

A reliable seal design starts with the operating conditions.

Before selecting a standard seal or requesting a custom design, define the main application parameters below.

Step Consideration Key Questions
1 Sealing Position Rod / Shaft, Piston / Bore, Face, Shaft & Bore, or other configuration
2 Motion Static, Reciprocating, Oscillating, Rotary, Single Acting, Double Acting, Helix
3 Pressure Operating pressure, pressure direction and pressure fluctuations
4 Temperature Minimum, continuous and maximum operating temperature
5 Media Fluid, gas, chemical, vacuum or other media
6 Speed / Cycle Shaft speed, reciprocating speed, frequency and expected cycle life
7 Spring Energizer Required spring configuration, load, deflection and available space.
8 Lip Beveled / Chamfered, Scraper, Rounded / Radiused or custom
9 Seal Material PTFE or other polymer, grade, filler and required chemical resistance
10 Gland & Hardware Groove dimensions, extrusion clearance, shaft/bore dimensions and surface condition

Design Selection Principle

These parameters should be evaluated together. A change in pressure, temperature, motion or hardware clearance may require a different spring, lip profile, material or gland configuration.

DESIGN FACTOR 08

Custom Seal Design

Standard spring energized seal profiles cover a wide range of applications. However, some operating conditions require a seal designed specifically for the application.

Because Hansealing manufactures its spring energizers in-house, the spring can be developed together with the seal geometry rather than selected only from an externally available spring range.

This allows closer control of spring load, deflection, dimensions, spring material and production requirements when a standard configuration is not suitable.

Custom design may be required when:

  • Operating conditions fall outside standard application requirements
  • Available installation space limits the seal cross-section
  • Media compatibility requires a specific polymer or spring material
  • Pressure or extrusion clearance requires a special seal or backup configuration
  • The mating hardware has non-standard dimensions or surface conditions
  • Combined sealing functions are required, such as sealing and scraping
  • A specific spring load or deflection characteristic is required
  • An existing seal needs to be reproduced or improved

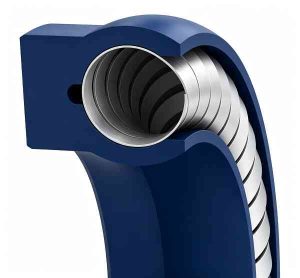

Symmetrical Helical Spring Rod Or Piston Seal With Rounded Seal Lips
Helical Spring Seal
What to Send Why It Helps
Application drawing (PDF / CAD) Shows gland dimensions and hardware geometry
Operating conditions Pressure, temperature, motion type and speed
Media Determines polymer and spring material compatibility
Existing seal sample Helps identify the current design when replacing a seal
Performance requirements Expected service life, leakage limits and special conditions
